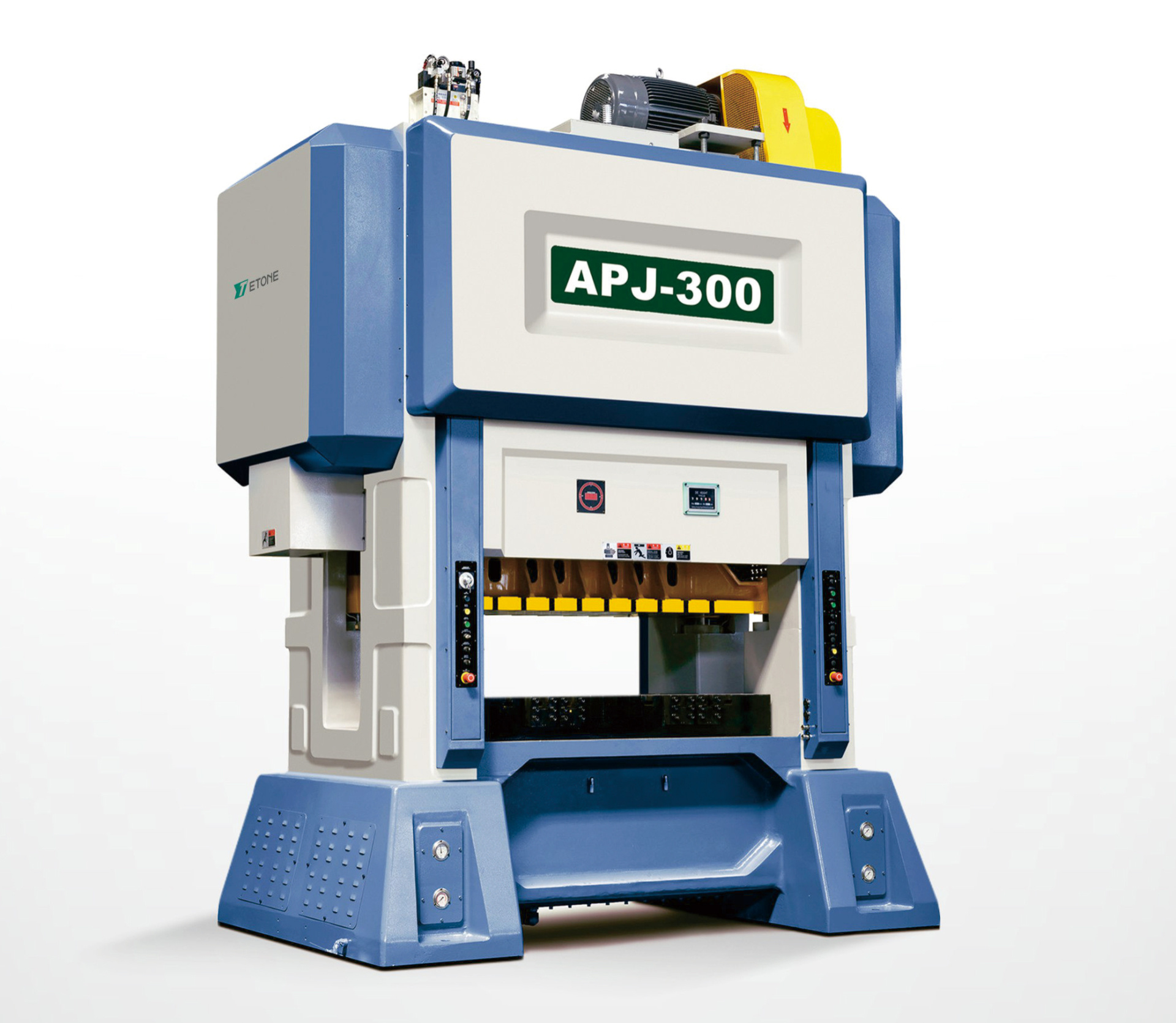

APJ Series Ganty Type Speed Precision Four Ganty Type Speed Precision Four
+
  • APJ Series Ganty Type Speed Precision Four Ganty Type Speed Precision Four

APJ Series Ganty Type Speed Precision Four Ganty Type Speed Precision Four

High steel alloy casting frame structure (with suitable for the frame designed by computer analysis), processed by the internal stress elimination process, further improving the high rigidity frame which is indispensable for precision, achieving low noise and low vibration,and improving service life of the die.

Key words:

Gantry/Motor Core High Speed Punch

  • Product Description
  • Standard/Optional
    • Commodity name: APJ Series Ganty Type Speed Precision Four Ganty Type Speed Precision Four
    • product: GANTY TYPE SPEED PRECISION FOUR GANTY TYPE SPEED PRECISION FOUR

    High steel alloy casting frame structure (with suitable for the frame designed by computer analysis), processed by the internal stress elimination process, further improving the high rigidity frame which is indispensable for precision, achieving low noise and low vibration,and improving service life of the die.

    Technical parameters

    Model

      APJ-60 APJ-80 APJ-125 APJ-150 APJ-200

    Tonnage

    ton 60 80 125 150 200

    Travel

    mm 30 30 30 30 30

    Number of strokes per minute

    s.p.m 200-800 200-700 150-700 150-600 150-600

    Lower table size

    mm 950x650 1100x750 1200x850 1400x850 1700x950

    Blanking hole

    mm 700x125 800x150 1000x200 1100x200 1300x250

    Sliding block area

    mm 950x420 1100x500 1200x600 1300x600 1700x700

    Die height adjustment stroke

    mm 300-350 330-380 360-410 360-410 370-420

    Die height adjustment motor

    kw 0.4 0.75 0.75 0.75 1.5

    Feeding line height

    mm 160±50 175±50 195±50 195 Soil 50 200±50

    Main motor

    kw 19 22 37 37 45



    Model

      APJ-220 APJ-300 APJ-350 APJ-400 APJ-450 APJ-500

    Tonnage

    ton 220 300 350 400 450 500

    Travel

    mm 30 30 30 40 40 40

    Number of strokes per minute

    s.p.m 150-600 150-400 150-350 150-350 120-300 120-250

    Lower table size

    mm 1900x1000 2200x1000 2400x1000 2800x1200 3000x1200 3300*1200

    Blanking hole

    mm 1400x300 2000x300 2200x300 2200x400 2500x400 2650*400

    Sliding block area

    mm 1900x750 2100x900 2400x900 2700x1100 3000x1100 3300*1200

    Die height adjustment stroke

    mm 370-420 400-450 400-450 450-500 450-500 490-550

    Die height adjustment motor

    kw 1.5 2.2 2.2 3.7 3.7 3.7

    Feeding line height

    mm 200±50 210±50 210±50 220±50 270±50 220 50

    Main motor

    kw 45 55 55 75 90 90



  • Standard configuration

    • Electric model height adjustment

    • Die height display precision 0.01mm

    • Inching positioning device

    • The computer can memorize data of 30 sets of mold processing materials

    • Three groups of batch control

    • Two groups of feed error detection

    • Linked/single  action, with 0°and  90°positioning function

    • Host forward/reverse device

    • Hydraulic slide lock device

    • Lubricating oil cooling cycle machine

    • Italian OMPl integrated clutch brake

    • Stand-alone electric control box

    • Work  box

    • Work lamp

    • Main motor frequency converting control

    Optional configuration

    • Bottom dead center precision detector

    • Rapid die clamping device

    • Hydraulic die lifting device

    • High speed feeder

    • Double head hydraulic unwinder

    • Leveling discharge machine

    • Oil hydraulic shockproof foot device

    • Punching controller

    • Front and rear sound insulation safety door
