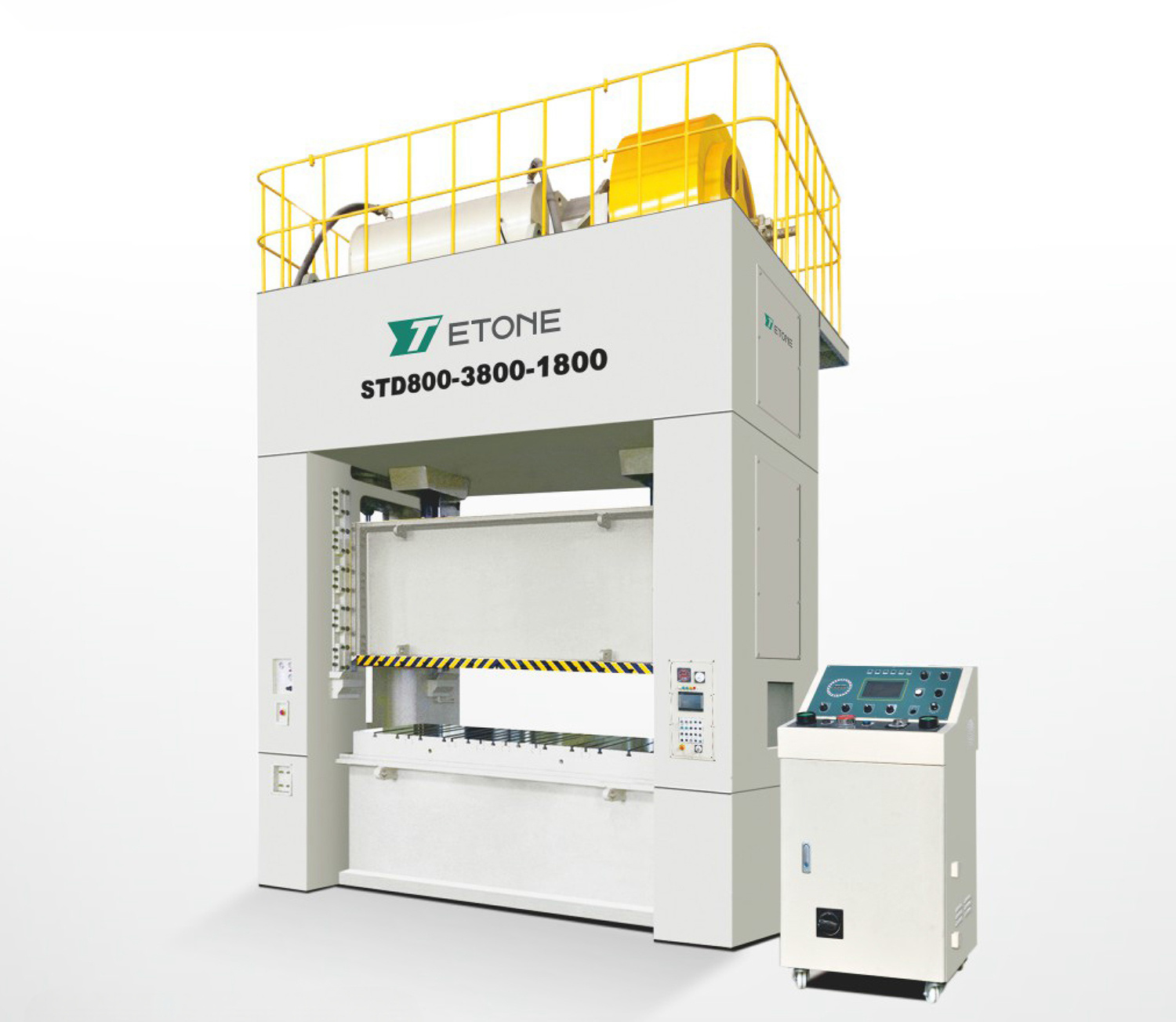

STD Series Straight Column Type Double Crankshaft Powerful Press
Key words:
Closed high precision steel frame press
Classification:
- Product Description
- Standard/Optional
-
- Commodity name: STD Series Straight Column Type Double Crankshaft Powerful Press
The slider is guided by eight sides with long guide rail to guarantee the operation precision. Hydraulic overload protection device, overload automatic emergency stop, protect the press and mold safety, enable convenient operation.
Product Features
• PLC electrical centralized control, with emergency stop, inching, single, continuous operation specifications.
• Dry pneumatic friction clutch, low noise, large clutch torque, small brake torque and easy maintenance.
• The fuselage is a closed structure with beams, columns and bases. It is tensioned by four tensioning screws and has good rigidity (400-600).
Technical parameters
Name
Specifications
STD-400
STD-500
STD-600
STD-800
STD-1000
Model
Type S
Type H
Type S
Type H
Type S
Type H
Type S
Type H
Type S
Type H
Tonnage
ton
400
500
600
800
1000
Rated tonnage point
mm
13
7
13
13
9
13
9
13
9
Stroke length
mm
400
300
400
300
400
300
400
250
400
300
Number of strokes
s.p.m
15-30
30-60
15-30
30-60
15-30
25-50
15-30
25-50
15-25
25-40
Maximum die height
sp.m
600
650
650
700
650
700
700
700
1000
1050
Slider adjustment volume
mm
150
200
200
200
250
Upper table size
mm
2800x1300
3100x1400
3600 × 1400
3600x1600
4600x1800
Lower table size
mm
2800x1400
3100x1500
3600 × 1500
3800x1800
4600x1800
Side opening
mm
850 × 600
950 × 650
1000x700
1000 × 800
1200 × 900
Die cushion capacity
mm
60
70
80
80
80
-
Standard configuration
• Frequency converter
• Oil hydraulic overload protection device
• Electric slider adjustment device
• Freestanding control box
• Mobile console
• Digital die height indicator (0.1mm)
• Electric butter lubrication device
• Power outlet
• Secondary drop protection device
• Misfeed detection device
• Preset counter (6 digits)
• Air blast device 1/2" primary loop
• Air source connector 1/2"primary loop
Select Configuration
• Die pad device
• Photoelectric safety device
• Slider upper feeding device
• Safety stop and safety latch
• Shockproof device
• Die lighting lamp
• Quick die changer
• Mobile trolley
• Automatic feeding system
