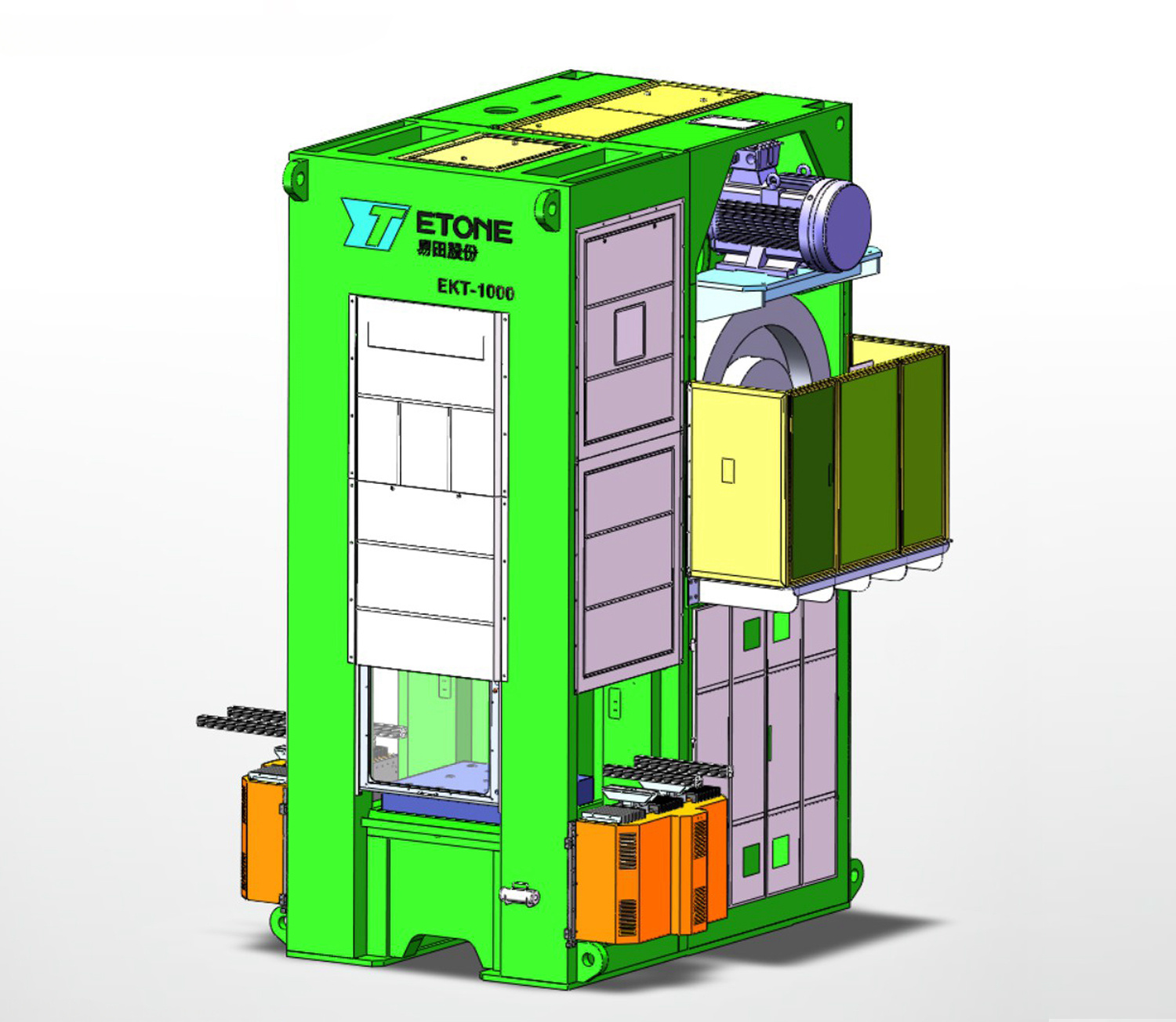

EKT Series Knuckle Cold &warm Forging Press
+
  • EKT Series Knuckle Cold &warm Forging Press

EKT Series Knuckle Cold &warm Forging Press

Cold-temperature forging press is a professional equipment for processing cold-temperature forging process precision forging, which belongs to the feld of precision die forging, widely used in automobiles, ships, aviation, hardware tools, engineering machinery and other fhelds.

Key words:

Products

Classification:

  • Product Description
  • Standard/Optional
    • Commodity name: EKT Series Knuckle Cold &warm Forging Press
    • product: KNUCKLE COLD &WARM FORGING PRESS

    Cold-temperature forging press is a professional equipment for processing cold-temperature forging process precision forging, which belongs to the feld of precision die forging, widely used in automobiles, ships, aviation, hardware tools, engineering machinery and other fhelds.

    Main feature

    • The structure of the fuselage is reasonable, the rigidity is high, the comprehensive clearance is small, and the product accuracy and the service life of the mold are improved.

    • The speed of the slider near the bottom dead center is very slow,  creating maximum pressure near the end of the working stroke and maintaining it for a  long time. The processing range is wide, the position accuracy of the bottom dead point is high, and the working energy   is high.

    • The slider adjusting motor uses a servo motor with a high-precision encoder to adjust the height of the slider, allowing the closing height, to be accurate to 0.01mm.

    • Using wet clutch brake ,noise and vibration is small.

    • Applicable forgings: gear, bell shell, transmission intermediate shaft/output shaft, claw pole, etc.



    Technical parameters

    Name

    Specification

    EKT-250

    EKT-400

    EKT-650

    EKT-800

    EKT-1000

    EKT-1300

    EKT-1600

    Tomage

    ton

    250

    400

    650

    800

    1000

    1300

    1600

    Nominal force stroke

    mm



    10

    10

    10

    13

    13

    13

    Jhloaded continuous stroke numbe

    PM

    30~60

    25~45

    20~40

    20~40

    20~30

    15~30

    15~30

    Slide stroke length

    mm

    160

    200

    250

    250

    250

    250

    250

    Die height

    mm

    400

    450

    550

    650

    650

    680

    700

    Side adjustment

    mm

    50

    50

    50

    50

    50

    50

    50

    Slide area (LRwFB)

    mXm

    600 × 400

    700 × 600

    800 × 700

    900 × 800

    900 × 900

    1200 × 1000

    1300 × 1100

    Bokster erea (LRWFB)

    mmXm

    600 × 500

    700 × 600

    800 × 700

    900 × 900

    1000 × 900

    1200 × 1000

    1300 × 1100

    Bolster area thicknes

    mm

    120

    120

    150

    150

    160

    180

    250

    Upper ejector device

    Type



    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Cylinder/nitrogen spring

    Ejector force/stroke

    on/mm

    1.2/15

    5/50

    6/50

    8/100

    10/100

    13/100

    16/100

    Lower ejector device

    Type



    Mechanical

    Mechanical

    Mechanical

    Mechanical

    Mechanical

    Mechanical

    Mechanical

    Ejector force/stroke

    ton/mm

    13/80

    20/100

    35/110

    40/110

    50/110

    60/110

    65/110

    Station number

    2

    3

    3

    3

    3

    3

    3

    Main motor powe

    Kw

    30

    37

    45

    90

    110

    160

    250

    The above technical parameters can be modifhed as required.
    Upper and lower topping form and parameters can be designed according to customer requirements.

  • Standard configuration

    • Oil pressure overload protection device

    • Automatic lubricating device

    • Balancing cylinder automatic oll feeding device

    • Slider balancing device

    • Overstroke inspecting device

    • Production counter

    • Database

    • Electronic stroke number indicator

    • Photoelectric safety device

    • Reserved automatic electrical interfaces

    • Air ejector/air outlet

    • Numerical control system and touch screen panel

    • Emergency stop button

    • Both hands operation table

    • Electronic crankshaft angle display

    Optional accessory devices

    • Tonnage monitor

    • Slider upper feeding device

    • Floating  hydro-cylinder

    • Die set

    • Mould area light

    • Front and rear security gates/fences/ladders

    • Mould safety plug

    • Quick die exchange device

    • Peripheral automation

    • Cushion spring
