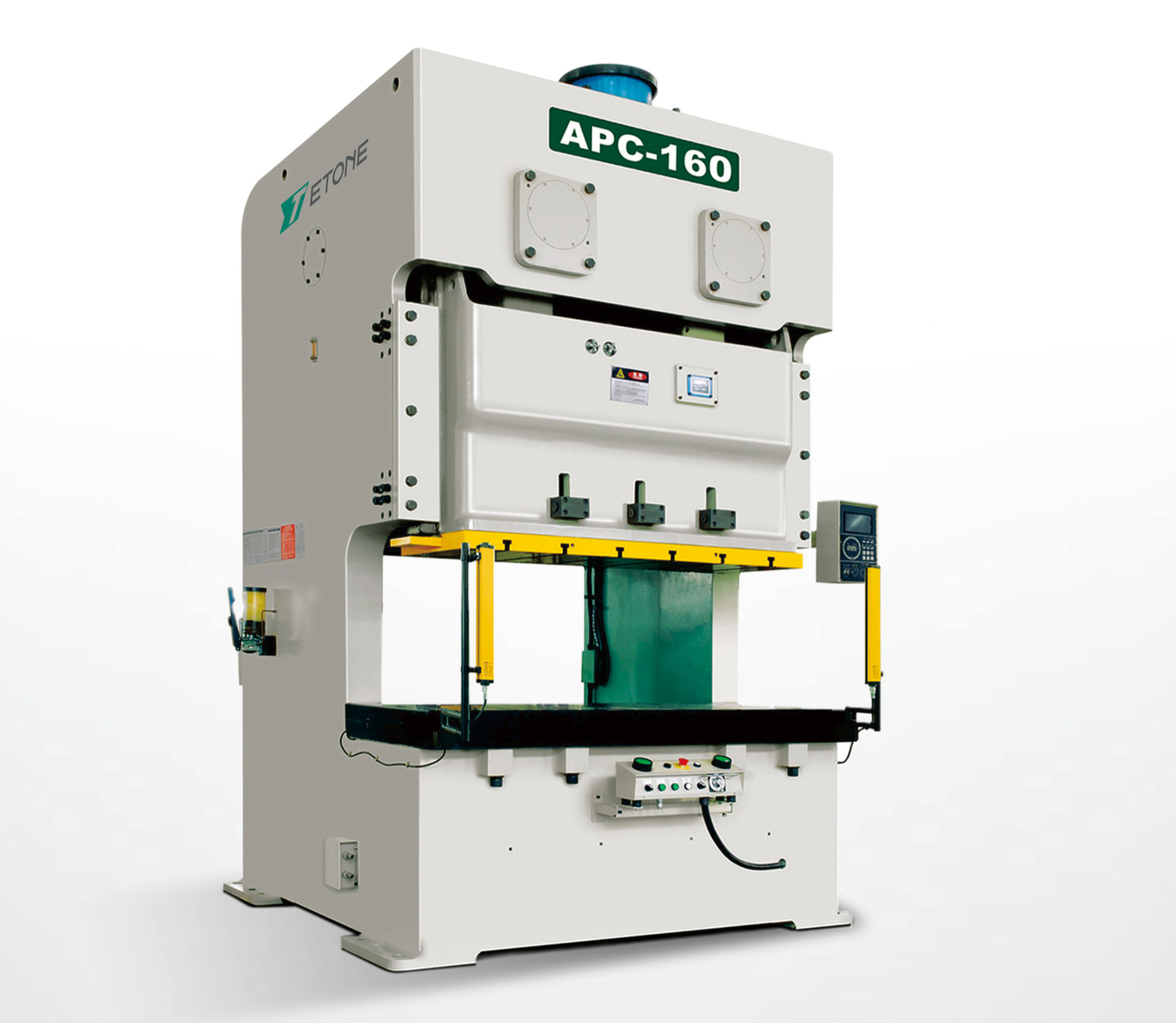

APC Series Double Crankshaft Precision Steel Frame Punch
Key words:
Open type high precision strong steel frame punch
Classification:
- Product Description
- Standard/Optional
-
- Commodity name: APC Series Double Crankshaft Precision Steel Frame Punch
- product: DOUBLE CRANKSHAFT PRECISION STEEL FRAME PRESS
The high-rigidity frame design, welded with high-quality steel and processed by the process of eliminating internal stress. Improve the precision stability and reliability of the machine. The center of the drive is aligned with the center of the machine to ensure accurate and stable punching.
Product Features
• To ensure the relative stabllity of the machine operation, the symmetrical two slide rails and the balancer device design are applied.
• The die precision may be up to 0.1mm and is safe, convenient and reliable.
• The crankshaft, the gear set, the connecting rod, etc. are processed by oxidation and grinding, and have extremely high comprehensiveness and wear resistance performance;
• Highly sensitive and reliable clutch/brake device and internationally leading double solenoid valve and overload protection device are applied to ensure the accuracy and safety of the operation and stop of the press slide;
• The machine structure lis designed reasonably, which is convenient for automatic production, reducing costs and improving efficiency;
• Advanced design concept, low noise, low consumption and energy saving.
Technical parameters
Name Specifications APC-110 APC-160 APC-200 APC-250 APC-315 Model V H V H V H V H V H Tonnage Ton 110 160 200 250 315 Rated tonnage point mm 5 3 6 3 6 3 7 3.5 7 3.5 Stroke length mm 180 110 200 130 250 150 280 170 300 170 Number of strokes s.p.m 35-65 50-100 30-55 40-85 25-45 35-70 20-35 30-60 20-35 30-50 Maximum die height mm 400 435 450 485 500 550 550 605 550 615 Slider adjustment volume mm 100 100 120 120 120 Slide size mm 1800×650×130 2000×760×150 2400×840×170 2700×900×170 2800×1000x190 Bolster Size mm 1400×500×70 1600×550×70 1850×650×95 2100×700×95 2200×900x95 Main motor kW 11 15 18.5 22 30x4 Supply air pressure kg/cm2 5 5 5 5 5 Precision JIS(CNS)1class Die cushion type Two plate & two cylinders Capacity Ton 3.6×2 6.3×2 10×2 14×2 13.7×2 Air pressure kg/cm² 6.5 7.2 6.75 9 7 Stroke mm 70 70 80 100 100 Die cushion top plate area mm² 350×235×2 sets 410×260×2 sets 540×350×2 sets 640×470×2 sets 720×340×2 sets
